MP2481DH-LF-P
Manufacturer:
Monolithic Power Systems
Mfr.Part #:
MP2481DH-LF-P
Datasheet:
Description:

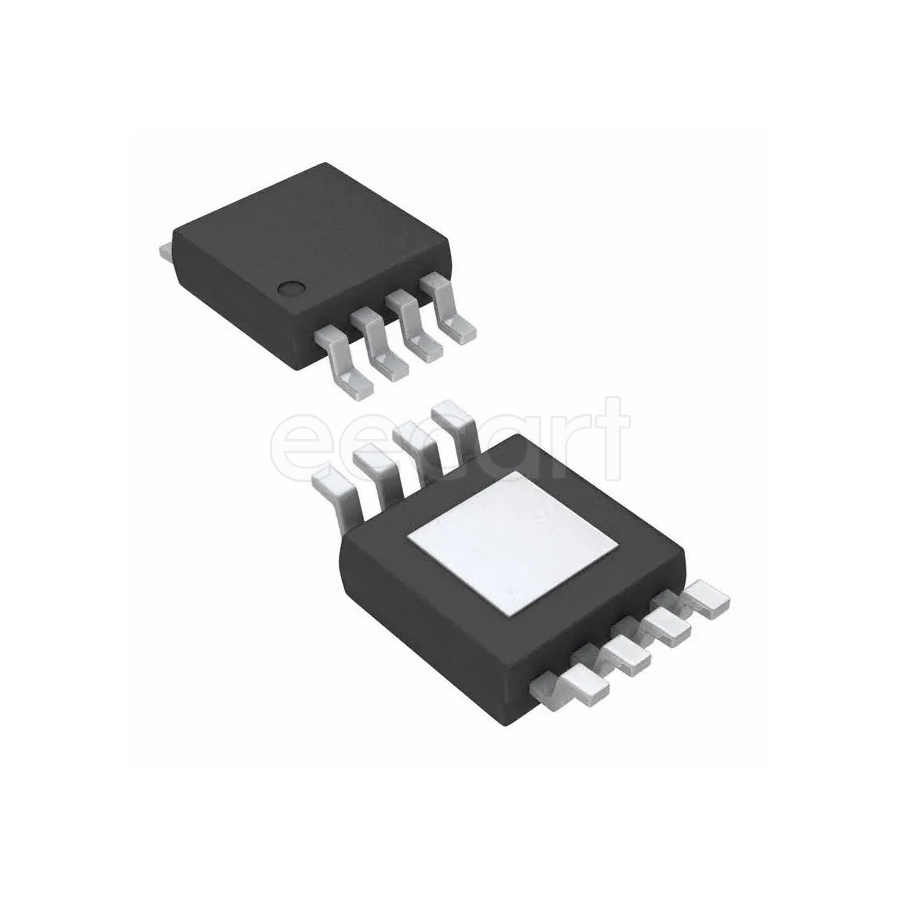

LED Drivers MSOP-8 EP SMD/SMT Analog, PWM 1.2 A
| Parameter | Value |
|---|---|
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -40 °C |
| Packaging | Reel |
| RoHS | Compliant |
| Weight | 0.139 g |
| Frequency | 1.4 MHz |
| Type | DC DC Regulator |
| Min Input Voltage | 4.5 V |
| Output Current | 1.2 A |
| Max Supply Voltage | 36 V |
| Min Supply Voltage | 4.5 V |
| Max Output Current | 1.2 A |
| Number of Channels | 1 |
| Switching Frequency | 1.4 MHz |
| Max Input Voltage | 36 V |
| Number of Outputs | 1 |
| Dimming | Analog, PWM |
| Output Current per Channel | 1.2 A |
| Nominal Input Voltage (DC) | 12 V |
| Internal Switch | Yes |
Stock: 1657
Distributors
pcbx
pcbxUnit Price$1.75260
Ext.Price$1.75260
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $1.75260 | $1.75260 |
| 10 | $1.30804 | $13.08040 |
| 25 | $1.19519 | $29.87975 |
| 50 | $1.13421 | $56.71050 |
| 100 | $1.07636 | $107.63600 |
| 300 | $1.04469 | $313.40700 |
| 500 | $1.01394 | $506.97000 |
| 1000 | $0.95752 | $957.52000 |
| 3000 | $0.92888 | $2786.64000 |
| 5000 | $0.90110 | $4505.50000 |
